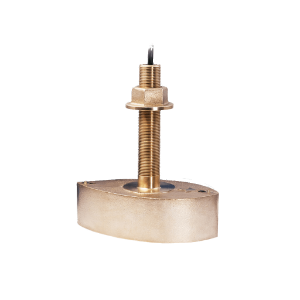

B260 BH DT DIP 50&200 1KW 10PINF XID FURUNO
Part #B260-10F-D
MFG #41-282-1-02
1 kW
The performance of Airmar’s "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and its wide, 19° beam yields broad coverage under the boat.
The thru-hull, B260 model has a bronze housing and is also available in stainless steel (SS260) for installation in metal hulls. The B260 gives excellent results at speeds up to 30 knots (34 MPH).
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a 19° beamwidth for depth performance to 762 m (2500')
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1000')
- Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
- Bronze housing
- Also available in transom (TM260), in-hull (M260), and stainless steel thru-hull (SS260) mounts
- Patented Xducer ID® technology
- Acoustic Window: UrethaneCable-Length: 10 m (33')Common Use: Fishing, Commercial FishingConnector: Furuno 10 PinConventional Beam: 19°/6°Country of Origin: USADeadrise Range: Up to 28° with fairingFrequency Band: 50/200 kHzMaterial: BronzeMax Depth: Low frequency- 735 m (2500'), High frequency- 294 m (1000')Mounting Style: Thru-HullSingle or Dual Frequency: Conventional Dual FrequencyTilted Element: NoPower Rating: 1 kWMax Deadrise Angle: 20°Functions: Depth, TemperatureHull Material: Fiberglass or woodMax Vessel LOA: 9 m (30') and aboveHole Size: 30 mm (1-3/16")Usable Shaft Length: 121 mm (4.75")Display Connector: 10
